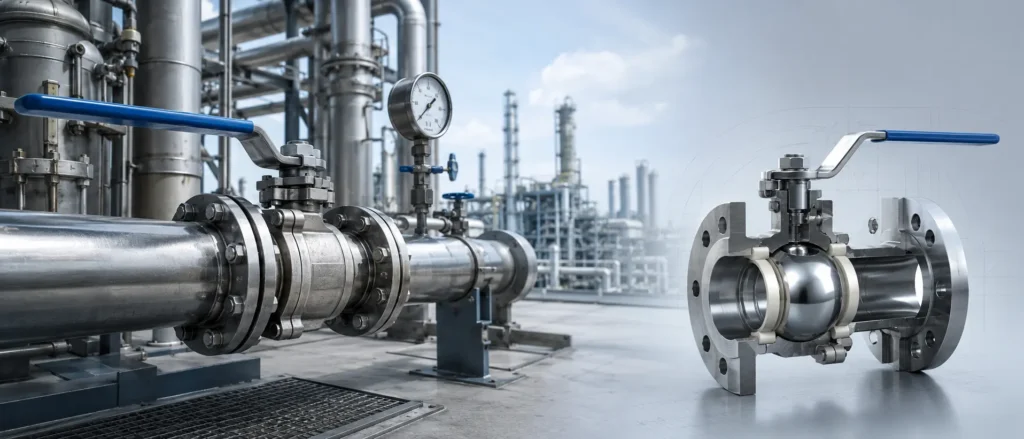

How to Select Ball Valve for Industrial Plant Process Piping

Why Ball Valve Selection Matters in Process Piping

A ball valve is widely used in process piping because it offers simple operation, compact design, good sealing performance, and low pressure drop when fully open. In many industrial plants, ball valves are used for isolation service, vent and drain lines, utility systems, tank farms, skid packages, and emergency shutdown applications. However, the same valve design is not suitable for every service condition.

Choosing a ball valve only by nominal size and pressure class can lead to common problems: seat damage, stem leakage, high operating torque, premature corrosion, cavitation-related wear, poor automation performance, or non-compliance with plant specifications. A professional selection process should evaluate the process fluid, pressure, temperature, piping code, valve material, end connection, bore type, seat material, sealing requirement, actuation method, and applicable industry standards.

1. Define the Process Conditions First

Before selecting a ball valve for industrial process piping, collect complete process data. At minimum, confirm the fluid name, operating pressure, design pressure, operating temperature, design temperature, flow rate, pipe size, line class, corrosion allowance, and whether the service is clean, dirty, viscous, abrasive, toxic, flammable, cryogenic, or high-temperature.

For clean liquids and gases, a soft seated floating ball valve may be sufficient. For high pressure, large size, frequent cycling, abrasive slurry, or critical isolation service, a trunnion mounted ball valve, metal seated ball valve, or severe service ball valve may be required. If the media contains suspended solids, crystallizing chemicals, polymers, or catalyst fines, the seat design and cavity relief arrangement become especially important.

2. Choose the Right Ball Valve Type

The two most common industrial ball valve designs are floating ball valves and trunnion mounted ball valves. A floating ball valve relies on line pressure to push the ball against the downstream seat. It is common in small to medium sizes and moderate pressure applications. A trunnion mounted ball valve supports the ball with mechanical trunnions, reducing seat load and operating torque. It is often preferred for large diameter, high pressure, pipeline, and automated shutdown applications.

Another key decision is full bore versus reduced bore. A full bore ball valve has an internal bore close to the pipe inside diameter, which minimizes pressure drop and allows pigging in certain pipeline systems. A reduced bore ball valve is usually more compact and economical, but it creates higher velocity and additional pressure loss. For process piping with flow-sensitive equipment, pump suction lines, or cleaning requirements, full bore is often the safer specification.

3. Match Body Material to Fluid Compatibility

Material selection is one of the most important steps when specifying a ball valve for industrial plant process piping. Carbon steel is commonly used for non-corrosive oil, gas, steam, and hydrocarbon services. Stainless steel is preferred for corrosive chemicals, food-grade utilities, clean service, and many water treatment applications. Duplex and super duplex stainless steels may be required for chloride-rich or seawater environments. Alloy materials such as Monel, Hastelloy, Inconel, or titanium may be selected for highly corrosive chemical processes.

Do not select the valve body material in isolation. The ball, stem, seats, seals, gaskets, fasteners, and packing must also be compatible with the media and temperature. A stainless steel body with unsuitable elastomer seals can still fail quickly in aggressive chemical service.

4. Select Seat and Seal Materials Carefully

The seat material determines the sealing performance, temperature capability, chemical resistance, and service life of the ball valve. PTFE seats are widely used because of their excellent chemical resistance and low friction. Reinforced PTFE improves pressure and wear capability. PEEK is selected for higher temperature and high pressure applications. Soft seats generally provide bubble-tight shutoff, but they may be damaged by abrasive particles, high velocity, or excessive temperature.

For steam, thermal oil, high-temperature hydrocarbons, catalyst service, or abrasive media, a metal seated ball valve may be more reliable. Metal seats can withstand harsher conditions, but they usually require higher operating torque and may have a different leakage class than soft seated valves.

5. Verify Pressure Class and Temperature Rating

A professional ball valve specification must match the piping class and design conditions. Common pressure classes include Class 150, 300, 600, 900, 1500, and 2500 for ASME systems, but the actual allowable pressure depends on material and temperature. Higher temperature reduces the pressure rating of many valve materials, and non-metallic seats may limit the practical working temperature before the metal body reaches its rating limit.

Always verify pressure-temperature ratings against the applicable valve standard and the manufacturer’s published data. For industrial plant process piping, the valve should meet or exceed the design pressure and design temperature of the line, not just normal operating conditions.

6. Choose the Correct End Connection

Ball valves are available with flanged, threaded, socket weld, butt weld, wafer, clamp, and special end connections. Flanged ball valves are common in process plants because they are easy to install, remove, inspect, and replace. Threaded ball valves are often used in small utility lines, instrument air, drains, and low-pressure services. Socket weld and butt weld ball valves provide stronger, leak-resistant connections for high pressure, high temperature, or hazardous services.

The end connection should match the piping specification, maintenance philosophy, leakage risk, and installation location. For toxic, flammable, or high-pressure media, welded-end valves may reduce external leak points, while flanged valves may be preferred where frequent maintenance or replacement is expected.

7. Consider Fire Safety and Fugitive Emission Requirements

In refinery, petrochemical, LNG, chemical, and hazardous fluid services, fire-safe design and fugitive emission performance may be mandatory. Fire-safe ball valves are designed to maintain a degree of sealing after exposure to fire conditions. Low-emission ball valves use improved stem packing, live-loaded gland systems, and tested sealing designs to reduce leakage of volatile organic compounds and hazardous gases.

For environmental compliance and plant safety, specify the required test standard, leakage class, packing design, and certification documents in the purchase order. This is especially important for valves used in hydrogen service, natural gas systems, hydrocarbon processing, toxic chemicals, and volatile organic compound applications.

8. Manual or Automated Ball Valve?

Many ball valves are manually operated with a lever, gear operator, or handwheel. Manual valves are suitable for local isolation where operation is infrequent and access is safe. For large valves, high torque valves, remote locations, interlock systems, emergency shutdown service, or batch process control, automated ball valves are often required.

When selecting an automated ball valve, confirm torque values at maximum differential pressure, actuator safety factor, air supply pressure, fail-open or fail-close position, cycle frequency, limit switches, solenoid valves, positioners, enclosure rating, and hazardous area classification. A valve that works manually may not perform reliably when automated if the actuator is undersized or the valve torque increases during service.

9. Ball Valve Selection Checklist

10. Common Mistakes When Selecting a Ball Valve

One common mistake is using a standard soft seated ball valve in abrasive or dirty service. The valve may seal well during factory testing but leak after a short time in the plant. Another mistake is ignoring the maximum differential pressure when selecting an actuator. If the actuator is sized only for normal conditions, the automated ball valve may fail to open or close during upset conditions.

Engineers should also avoid selecting valve materials based only on the pipe material. The internal trim and sealing components may experience different chemical, thermal, or mechanical stresses. In addition, a low-cost valve without proper test certificates, material traceability, or pressure-temperature data may create higher lifecycle cost than a correctly specified industrial ball valve.

Recommended Specification Format

A clear ball valve inquiry or purchase specification should include the following information: valve size, pressure class, body material, ball and stem material, seat material, seal material, bore type, end connection, operation method, design standard, testing standard, fire-safe requirement, fugitive emission requirement, media, design pressure, design temperature, flow direction if applicable, and documentation requirements.

For example: “NPS 4 Class 300 full bore floating ball valve, ASTM A351 CF8M body, 316 stainless steel ball and stem, RPTFE seats, graphite packing, raised face flanged ends, anti-static design, blowout-proof stem, fire-safe tested, suitable for hydrocarbon service, with material test certificates and pressure test report.” This level of detail helps suppliers quote the correct valve and reduces technical clarification time.

Conclusion

Selecting a ball valve for industrial plant process piping requires a systematic review of process conditions, piping class, material compatibility, valve design, sealing performance, pressure-temperature rating, end connection, actuation, and compliance requirements. The best ball valve is not always the cheapest or the most commonly stocked option. It is the valve that safely matches the service conditions, provides reliable shutoff, minimizes leakage risk, and supports long-term plant operation.

For critical services, work with experienced valve engineers or qualified manufacturers who can provide technical data sheets, pressure-temperature ratings, material certificates, test reports, and application references. A well-selected ball valve improves process safety, reduces downtime, and delivers lower lifecycle cost across the entire industrial piping system.
