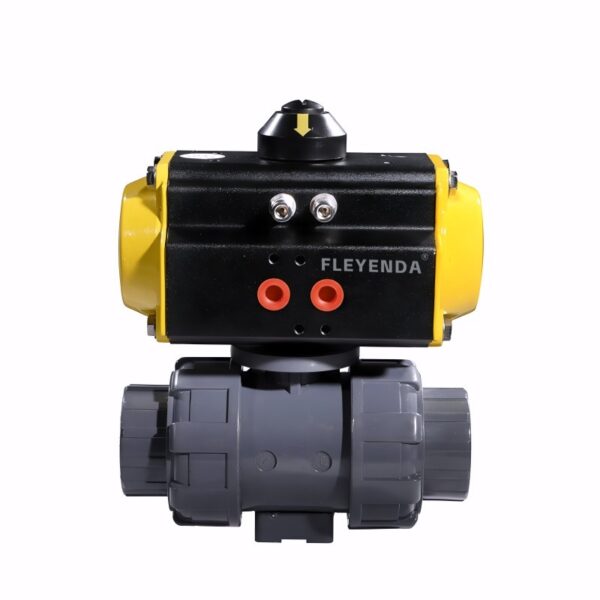

FLE-AT-Q 2-Way PVC Double Union Pneumatic Ball Valve
FLE-AT-Q 2-Way PVC Double Union Pneumatic Ball Valve
Fleyenda Double Union Pneumatic PVC Ball Valve DN15 to DN200(1/2″ to 8″), Valve material: PVC/CPVC/PPG/PPHABS, Double union connection. Easy maintenance without cutting pipes. PVC (Polyvinyl Chloride) is excellent corrosion resistance. This design feature reduces friction and turbulence, allowing for efficient flow and minimizing the risk of pressure drops.
Technical Specifications
Technical Parameters of Pneumatic PVC Ball Valve
| Size Range | DN15 to DN200(1/2″ to 8″) |
|
Location Indicator
|
Plastic
|
|
Pneumatic Actuator
|
AT Series |
| Stem | Stainless steel 304/316/316L |
| Screw | Stainless steel 304/316/316L |
| Ball Valve Material | PVC/CPVC/PPG/PPHABS |
| Union Nut | PVC/CPVC/PPG/PPHABS |
|
Endconnector
|
PVC/CPVC/PPG/PPHABS |
| Sealing Material | PTFE |
| O-Ring | EPDM/PPM |
| Connection Type | Flange (GB/ANSI/JIS/DIN) |
| Pressure Rating | 10bar/16bar |
| Temperature Of Medium | -30°C to 180°C (-86°F to 356°F) |
| Applications | Water Treatment, Chemical Processing, Wastewater Management etc |
Full Set of Accessories for Option: Air preparation units(F.R.L), limit switch boxes, electro-pneumatic positioner, solenoid valve.
Fleyenda AT Series Pneumatic Actuator
- Extruded aluminum with a hard anodized body and pistons.
- Caps, dual piston rack and pinion design for compact construction, and fast operation.
- Double stroke adjustment position with rotation range of 0⁰+4°,90⁰+4°.
- Double acting and spring return type; modular preloaded spring cartridge design for spring return type, easy installation and maintenance.
- Standard operation rotation is 90°, special 120°135°180°etc available.
- Installation dimension standard according to ISO5211、DIN3337、NAMUR VDI/VDE3845.
- Good driving for ball valve and butterfly valve.
Features & Advantages of Fleyenda PVC Pneumatic Ball Valve
- Appearance: Compact and beautiful appearance.
- Performance: Excellent chemical corrosion resistance.
- Stenghth: Light weight. Excellent aging resistance and UV resistance, long service life.
- Performance: Excellent chemical corrosion resistance.
- Plastic ball valves are divided into temperature ranges according to material:
UPVC: -10℃~70℃
CPVC: -40℃~95℃
RPP: -20℃~90℃
PVDF: -40℃~140℃

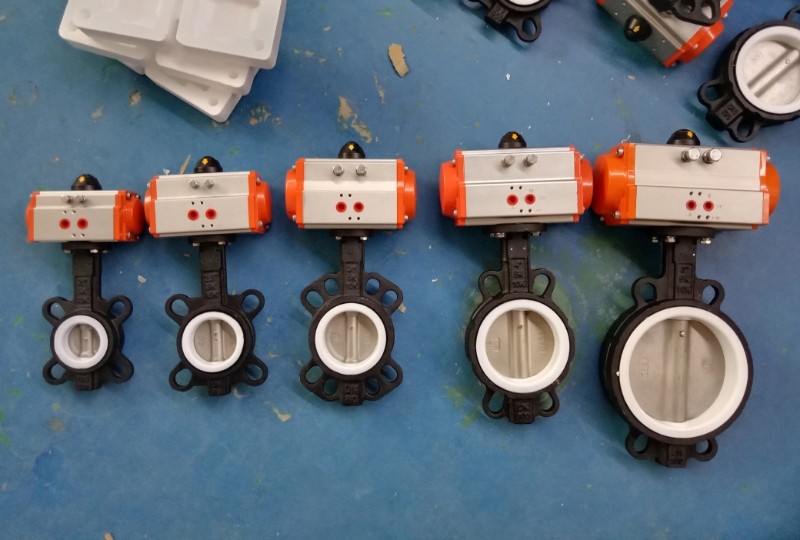

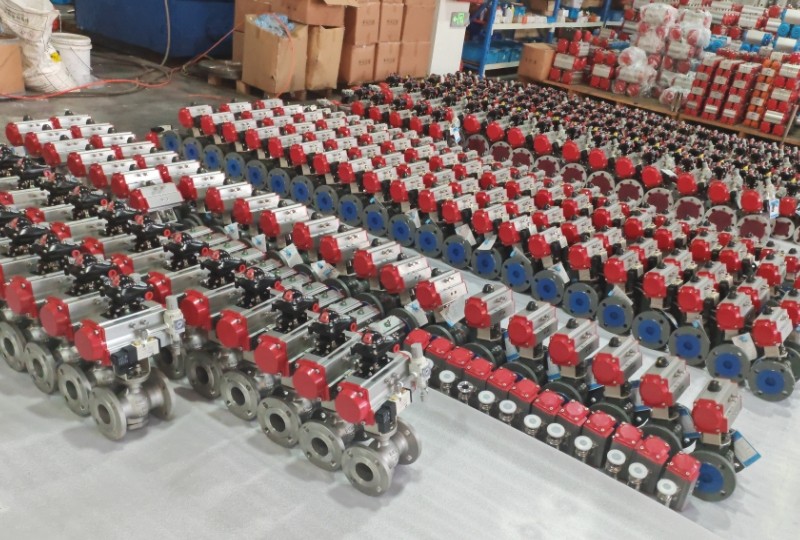

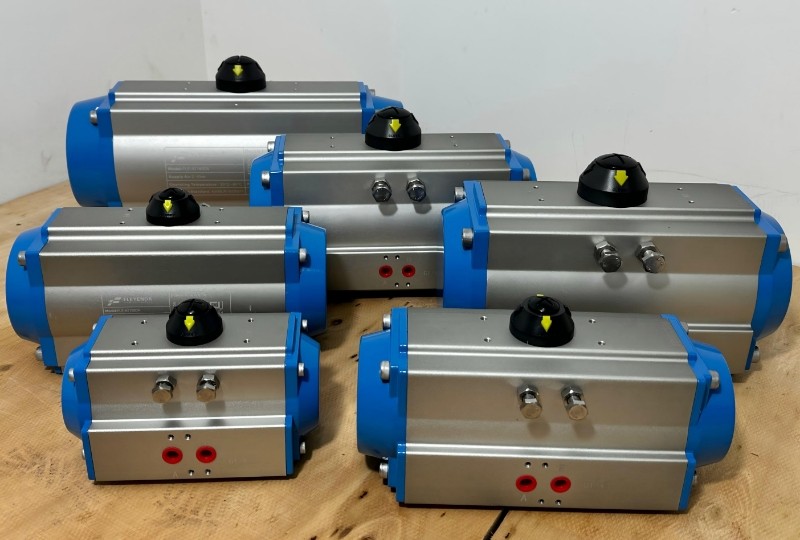

Our Products

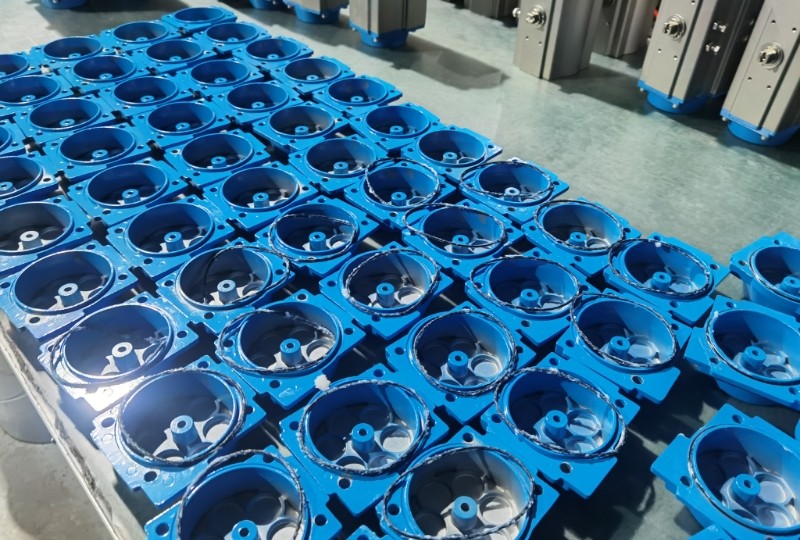

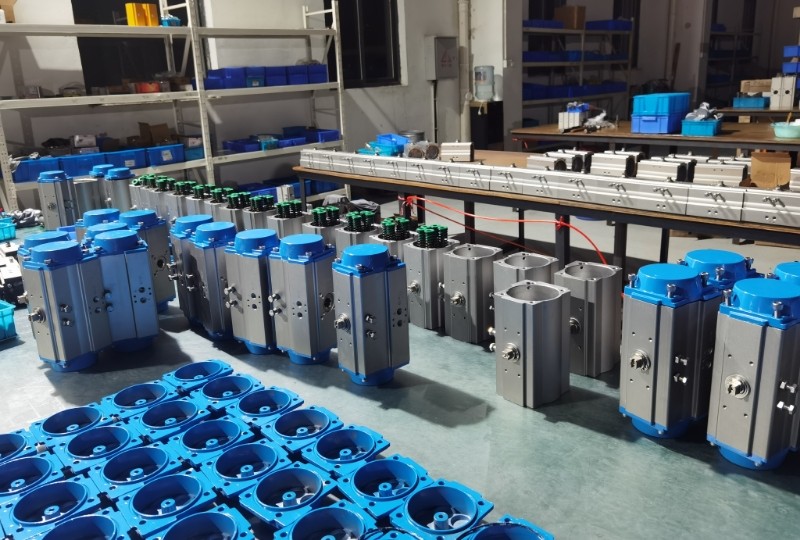

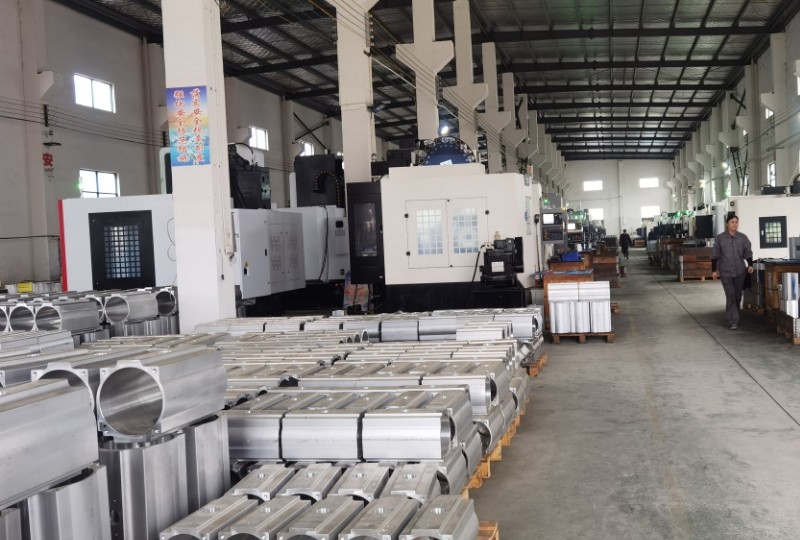

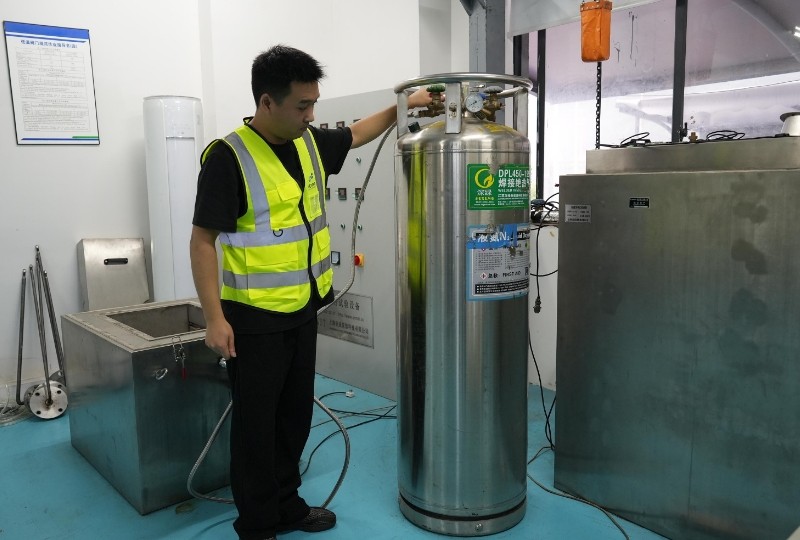

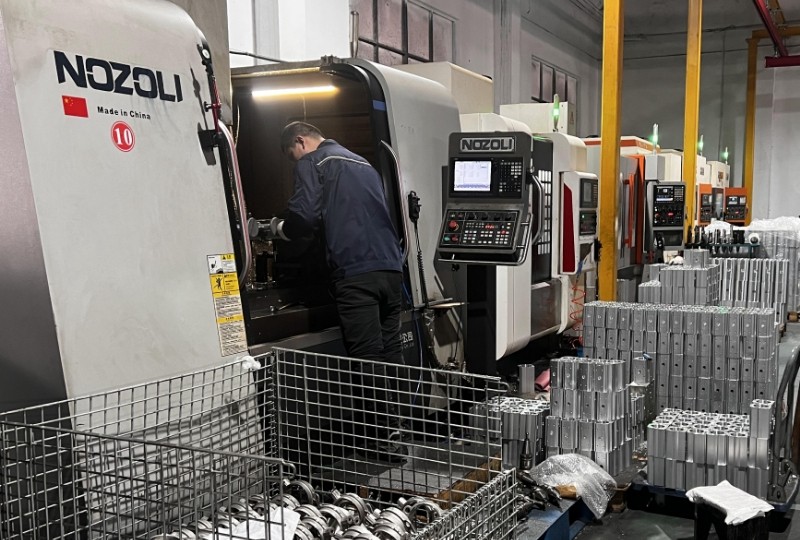

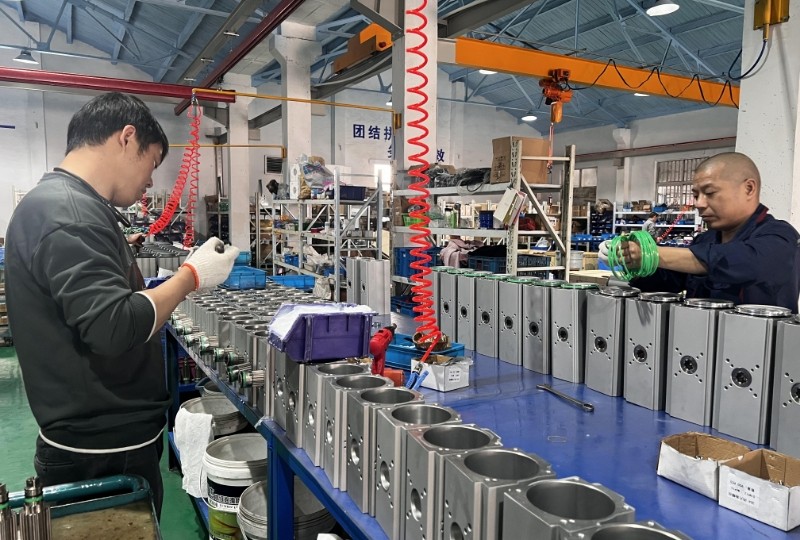

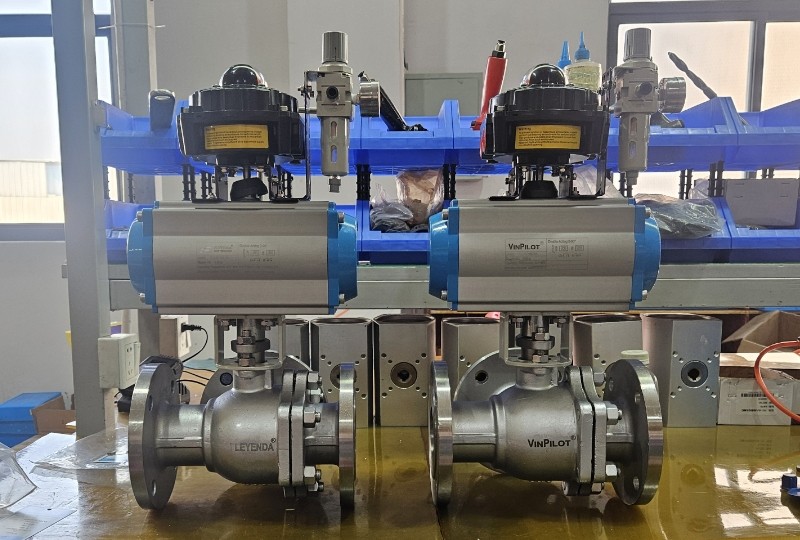

Our Factory
Product Drawings
Comprehensive Technical Drawing (Dimensions & Structure)
Product Benefits & Features
Why Choose Fleyenda Valve Manufacturing
Product Stability
We use reinforced structures and precision sealing to ensure consistent performance under pressure and temperature changes.
Conpany&Product Certification
We have CE, RoHS, ISO, SIL, TUV, and IP68 waterproof certifications covering safety, quality, and environmental standards.
Projects Experience
Cooperated over 40 countries, we have experience in oil & gas, energy, water, chemicals, food & beverage, and automation.
Customization Capability
With 20 years experience, we turn complex working conditions into precise valve solutions with high speed and accuracy.
Aftersales Support
•We have technical team provides real-time video support to help customers resolve on-site issues quickly.
Customer Cases
Trusted by Shell plc, Petronas, Chevron, TotalEnergies, and Dupont in projects across 40+ countries.
