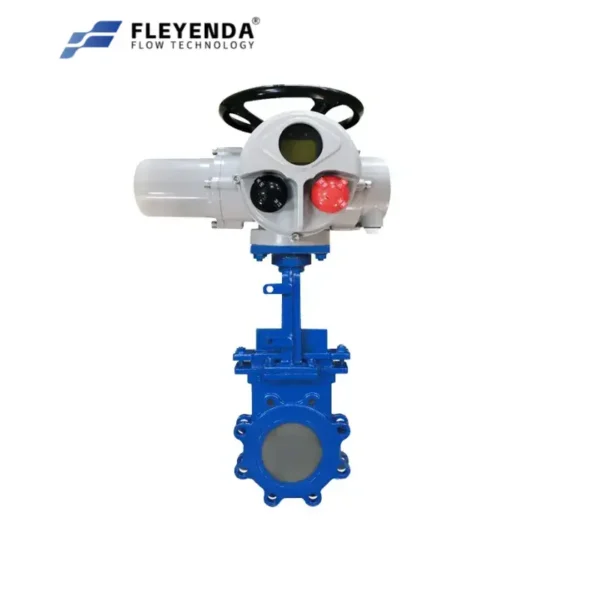

FLE-Z10-KG Lug Type Electrical Motorized Round Port Knife Gate Valve
FLE-Z10-KG Lug Type Electrical Motorized Round Port Knife Gate Valve
Lug type motorized round port knife gate valves provide tight shut-off and use an electric actuator for precise, reliable remote control. They are widely used in wastewater treatment, mining, chemical processing, and power generation applications.
Technical Specifications
| FLE-Z10 Multi-Turn Electric Actuator |
Ordinary ON-OFF Type |
|
Ordinary Adjustable Type |
|
|
Adjusting Switch Type |
|
| Intelligent Type
AC380V AC220V,Special Voltage Can be Customized |
|
| Size Range | DN50 – DN1000 |
| Pressure Rating | PN1.0Mpa |
| Voltage | AC380V AC220V,Special Voltage Can be Customized |
| Body Material | Cast Iron, Carbon Steel(WCB), Stainless Steel(CF8, CF8M) |
| Stem Material | Cast Iron, Carbon Steel(WCB), Stainless Steel(CF8, CF8M) |
| Sealing | PDEM: -10℃ ~120℃ / PTFE: -30℃ ~180℃ |
| Connection Type | Wafer, Flanged Type |
| Standard | GB/ANSI/JIS/DIN |
| Application Medium | Water, Gas, Oil, Powder, Steam, |
| Applications | Slurry, Chemical, Water Treatment, Pulp & Paper, Mining, Boiler, etc |
Product Drawings
Comprehensive Technical Drawing (Dimensions & Structure)
Product Benefits & Features
1. Stable & Precise Operation for Demanding Media
•Knife gate valve design enables smooth cutting and shut-off of slurry, powder, and particulate media
•Fast opening and closing performance supports frequent flow regulation
•Stable operation under PN1.0 MPa pressure in water, gas, oil, and steam systems
2. High-Accuracy Multi-Turn Electric Actuator
•Z Series multi-turn electric actuator with digital integrated control technology
•Torque measurement accuracy ≤5% with dynamic monitoring and over-torque alarm
•High-precision hybrid encoder ensures accurate valve positioning (Class 1 accuracy)
•Available in ON-OFF, adjustable, and intelligent control types
3. Excellent Materials & Wide Application Compatibility
•Valve body and stem available in cast iron, carbon steel (WCB), and stainless steel (CF8 / CF8M)
•PTFE / PDEM sealing materials provide excellent corrosion and temperature resistance
•Wafer and flanged connections compatible with GB / ANSI / DIN / JIS standards
•Suitable for slurry, chemical, mining, water treatment, and pulp & paper industries
4. Easy Maintenance & Long Service Life
•Simple and compact structure reduces installation space and maintenance effort
•Lightweight design improves handling and on-site installation efficiency
•Low wear structure and reliable sealing extend service life
•Cost-effective solution with reduced downtime and maintenance costs
Why Choose Fleyenda Valve Manufacturing
Product Stability
We use reinforced structures and precision sealing to ensure consistent performance under pressure and temperature changes.
Conpany&Product Certification
We have CE, RoHS, ISO, SIL, TUV, and IP68 waterproof certifications covering safety, quality, and environmental standards.
Projects Experience
Cooperated over 40 countries, we have experience in oil & gas, energy, water, chemicals, food & beverage, and automation.
Customization Capability
With 20 years experience, we turn complex working conditions into precise valve solutions with high speed and accuracy.
Aftersales Support
•We have technical team provides real-time video support to help customers resolve on-site issues quickly.
Customer Cases
Trusted by Shell plc, Petronas, Chevron, TotalEnergies, and Dupont in projects across 40+ countries.
Our Product Actual Export Pictures
FAQs That 80% Users Interest
1.What kinds of customized services can Fleyenda provide?
Private Labeling, Material Selection, dimensions customized, Actuator Options, etc. We also offer fittings and piping for optional.
Fleyenda is committed to providing you with a one-stop service.
2.How does Fleyenda Valve control the products quality?
We have the IPQC and QC process. We regularly do pressure testing, leakage testing, material analysis, and performance testing. Fleyanda Valve holds ISO 9001, CE, and other certifications.
Fleyedna focuses on upgrading production facilities, testing facilities and focuses on innovation to provide customers with high-quality products in the industry.
3. Can you help us to choose the right products?
Yes, We can help you choose the right valves for your needs. To do so, we would need some specific information from you.
-What is the application or industry which the valves will be used (e.g., oil and gas, water treatment, chemical processing)?
-What is the fluid or gas that will be flowing through the valves?
-What is the working pressure and temperature range for the valves?
And so on.
4.How long does it take you to prepare the goods?
We have a large number of products in stock and can be ready within 7 days. Customized products require 30 days of lead time.
