FLE-D-CEW Electric Cast Iron Wafer EPDM Butterfly Valves
The Electric Cast Iron Wafer EPDM Butterfly Valve features a durable cast iron body, EPDM seat, and precise electric actuator, ensuring tight sealing and stable torque control for water, HVAC, and chemical systems, verified by ISO and CE certification
Technical Specifications
| Size Range | DN50–DN600 (2″–24″) |
| Working Pressure Range: | PN10 / PN16 (150 PSI) |
| Working Temperature Range: | –10°C to +120°C |
| Body Material: | Cast Iron |
| Connection Type: | Wafer type |
| Applicable Medium: | Water, air, oil, non-corrosive fluids, light chemicals |
| Actuator Type: | Electric quarter-turn actuator |
| Voltage Options | AC220V, AC110V, AC380V, DC24V |
| Design Standard | ISO 5752 / EN 558-1 Series 20 |
| Testing Standard | API 598 / EN 12266-1 |
| Fire-Safe Design | Not fire-safe |
| Certification | CE / ROHS / ISO / SIL / TUV /IP68 Waterproof |
| Customization | Above Are Standard Parameter Samples. If You Have Specific Parameters And Materials, We Can Customize Them All. |
Product Drawings

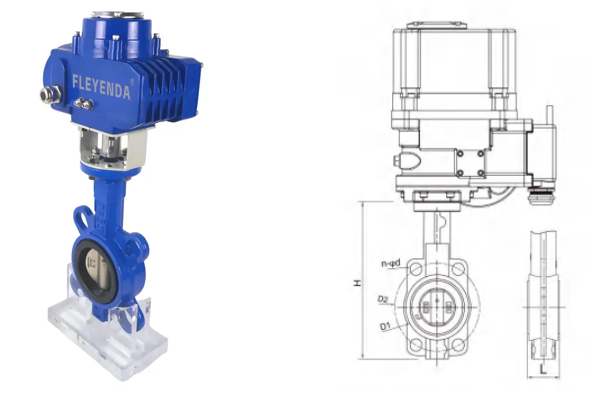

Comprehensive Technical Drawing (Dimensions & Structure)
Product Benefits & Features
1. Reliable Flow Control Performance
• The Electric Cast Iron Wafer EPDM Butterfly Valve provides precise flow regulation with a high-torque motorized actuator.
• The EPDM seat ensures tight sealing and prevents leakage under variable pressure.
• The stainless-steel or nickel-plated disc reduces friction for quick, efficient operation.
• The electric actuated valve maintains stable control for both on/off and modulating functions.
2. Durability and Material Strength
• The cast iron body offers high mechanical strength and corrosion resistance.
• The EPDM lining resists heat, aging, and mild chemical attack for longer service life.
• The hard-coated disc and precision stem ensure consistent sealing under load.
• The IP67 actuator housing protects against dust and moisture for reliable use.
3. Easy Installation and Maintenance
• The wafer connection fits PN10/PN16/ANSI150 flanges for fast installation.
• Compact actuator-valve integration saves pipeline space.
• Simple wiring enables quick setup and remote operation.
• The replaceable EPDM seat reduces maintenance time and cost.
4. Versatile Industrial Applications
• Used in water treatment, irrigation, and fluid control systems.
• Effective for HVAC and cooling water regulation.
• Suitable for wastewater and light chemical processing.
• The motorized butterfly valve supports automated and remote operation.
Why Choose Fleyenda Valve Manufacturing
Product Stability
We use reinforced structures and precision sealing to ensure consistent performance under pressure and temperature changes.
Conpany&Product Certification
We have CE, RoHS, ISO, SIL, TUV, and IP68 waterproof certifications covering safety, quality, and environmental standards.
Projects Experience
Cooperated over 40 countries, we have experience in oil & gas, energy, water, chemicals, food & beverage, and automation.
Customization Capability
With 20 years experience, we turn complex working conditions into precise valve solutions with high speed and accuracy.
Aftersales Support
•We have technical team provides real-time video support to help customers resolve on-site issues quickly.
Customer Cases
Trusted by Shell plc, Petronas, Chevron, TotalEnergies, and Dupont in projects across 40+ countries.
Our Product Actual Export Pictures
FAQs That 80% Users Interest
1. What factors matter most when selecting an actuator for an automated butterfly valve system?
• Choose an actuator with torque output 1.2–1.5× higher than the valve’s required torque.
• Confirm the control signal type matches your automation setup.
• Use ISO 5211 mounting standards for actuator compatibility.
• Ensure the Electric Cast Iron Wafer EPDM Butterfly Valve fits your system’s pressure and temperature conditions.
2. How should a wafer-style butterfly valve be installed for water or HVAC pipelines?
• The electric wafer butterfly valve must be centered between flanges and tightened evenly.
• Match the flange class to prevent leaks and seat distortion.
• Test actuator operation before commissioning.
• Leave space for actuator wiring and maintenance access.
3. Is an EPDM-seated valve suitable for wastewater and light chemical applications?
• The EPDM-lined electric valve seals effectively for water and mild chemicals.
• Avoid use with strong acids, solvents, or high-temperature steam.
• Confirm the cast iron body and disc materials are compatible with the medium.
• Use an actuator with an IP67 enclosure for wet or corrosive environments.
4. What are the advantages of using an electric actuated butterfly valve instead of a manual type?
• The motorized cast iron butterfly valve enables remote automation and precise control.
• Compact wafer design reduces space and simplifies installation.
• EPDM seat ensures tight sealing and low maintenance.
• Electric operation improves accuracy and process efficiency.
5. How can I fix performance issues in an electric wafer butterfly valve?
• Check actuator wiring, torque settings, and signal integrity.
• Inspect the EPDM seat for wear or debris.
• Correct flange misalignment that causes vibration or noise.
• Keep the electric actuated valve housing sealed and clean.
