FLEYENDA ZJHP M type Pneumatic Single Seat Sleeve Control Valve
FLEYENDA ZJHP M type Pneumatic Single Seat Sleeve Control Valve
The Angle Control Valve uses a 90° flow path to reduce turbulence and cavitation, providing precise flow control, lower erosion, longer service life, and verified performance under IEC 60534 and API 598 standards.

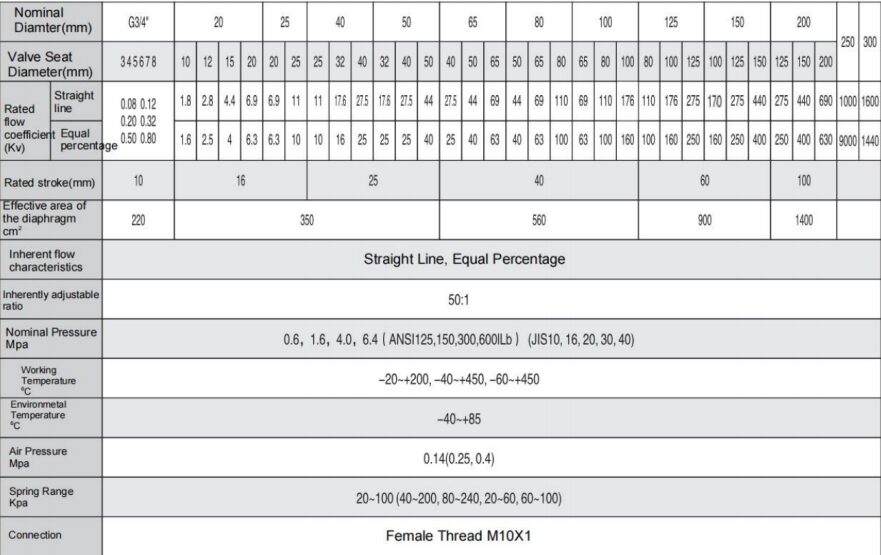

Technical Specifications
| Series | AT | AW | Linear | Pneumatic Cylinder | Sanitary |
|---|---|---|---|---|---|
| Valve Body | Ball valve, butterfly valve, plug valve | Gate valve, Global valve | Knife gate valve | Sanitary butterfly valve | |
| Function | Double Acting, Single Acting (Failure Resetting FO or FC) | ||||
| Control Accessories | • Solenoid Valve, Filter Regulator Lubricator (F.R.L.), Positioner, Limit Switch, Handwheel • Solenoid Valve & Positioner are with Explosion-proof grade and Signal Feedback type for choice |
||||
| Operating Medium | Clean and dry or lubricated air or inert gas. Any non-corrosive gas that is compatible with the internal parts of the actuator and the lubricant. The dew point temperature of the operating medium is -20°C, and the size of impurity particles is no more than 30u. When selecting a positioner, the impurity particle size should be no more than 5u. |
||||
| Air Source Pressure | 3bar to 8bar | ||||
| Operating Environment Temperature | • Standard type: -20°C to +80°C • Low-temperature type: -40°C to +80°C • High-temperature type: -20°C to +160°C |
||||
| Lubrication | Under normal operating conditions, the standard type does not require additional lubricant. For low-temperature or high-temperature environments, special lubricants are required. |
||||
ZJHP-M Type Pneumatic Single Seat (Sleeve) Control Valve–Brief Introduction
The pneumatic control valve is one of the most widely used and critical products among the actuators in process control systems. The ZJHP type pneumatic single-seat control valve and ZJHM type pneumatic sleeve control valve, in this product series are among the universal options available to users, suitable for various fluid media and process conditions in control systems.
The ZJ series pneumatic control valves were developed through repeated expert discussions and in-depth analysis of domestic and international product characteristics, they incorporate the advantages of the latest generation of control valves globally. Leveraging mature domestic design and manufacturing expertise while considering user needs for on-site operation and maintenance, this new generation of products was designed and prototyped with distinctive Chinese features, adopting IEC international standards.
Compared to older domestic and international models, the installation height is reduced by 30%, weight is decreased by 30%, and the flow coefficient (Kv value) is increased by 30%, achieving material savings and energy efficiency. The design offers multiple flange types and connection spans, enabling the replacement of older domestic and imported products, facilitating localization and modernization.
Additionally, these valves ensure reliable operation, precise flow characteristics, a wide adjustable range, minimal seat leakage, and stable performance. The multi-spring actuator design further enhances functionality. With these unique advantages, the product delivers high-quality control performance and economic benefits across various industrial applications.
● Working principle and structure
The ZJHP pneumatic single-seat control valve consists of the ZHA(B) pneumatic multi-spring diaphragm actuator and the VJP low-flow-resistance straight-through single-seat valve, as shown in Fig. 1(a).
The ZJHP-M sleeve control valve consists of the ZHA(B) pneumatic multi-spring diaphragm actuator and the VJM low-flow-resistance sleeve valve, as shown in Fig. 1(b).
When an external pneumatic signal pressure is introduced into the diaphragm chamber, this pressure acts on the diaphragm to generate thrust, which compresses the spring assembly and moves the push rod, thereby driving the valve stem to open or close the valve core until the thrust balances with the reaction force of the compressed spring assembly, stabilizing at a certain stroke. According to this principle, the stroke of the valve core forms a proportional relationship with the magnitude of the input signal pressure.
The pneumatic multi-spring diaphragm actuator can be divided into two types based on the action mode: direct-acting and reverse-acting. When the signal pressure increases, the actuator with the push rod moving outward from the diaphragm chamber is the direct-acting type, designated as the ZHA model. When the signal pressure increases, the actuator with the push rod retracting into the diaphragm chamber is the reverse-acting type, designated as the ZHB model. These are illustrated by the actuators in Fig. 1(a) and Fig. 1(b), respectively.
The ZJHP and ZJHP-M pneumatic control valves can be classified into air-to-close and air-to-open types based on their operation modes. The air-to-close valve consists of a direct-acting actuator and the valve. When the input signal pressure changes from the lower limit to the upper limit, the valve moves from fully closed to fully open. The air-to-open valve consists of a reverse-acting actuator and the valve. When the input signal pressure changes from the lower limit to the upper limit, the valve moves from fully closed to fully open. These are shown in Fig. 1(a) and Fig. 1(b), respectively.
The pneumatic multi-spring diaphragm actuator features a compact height, light weight, and simple installation and calibration. It consists of key components such as the diaphragm, compression springs, spring plate, push rod, bracket, bushing, and diaphragm cover. The diaphragm adopts a deep dish shape with minimal effective area variation and is made of high-quality rubber, ensuring normal operation within a temperature range of -40°C to +85°C. The compression springs are arranged in a multi-spring configuration to reduce height. The push rod’s guiding surface is finely machined to enhance hardness and reduce roughness, minimizing hysteresis and improving sealing. The reverse-acting actuator employs an O-ring seal, which, combined with the push rod and bushing, ensures a simple structure and reliable sealing. Through precise design and machining, this actuator eliminates the need for spring adjustment mechanisms, allowing one-time assembly and reducing adjustment efforts. The push rod and valve stem are connected via a split nut for flexible installation and removal.
The low-flow-resistance straight-through single-seat valve and sleeve valve feature a simple and compact structure with a high flow coefficient. The valve adopts a straight-through single-seat design with top-guided valve body and no bottom cover, offering compact size, light weight, and smooth flow path for high efficiency. The valve body and piping connections use raised-face or ring-joint flanges to accommodate different nominal pressures. The valve body is available in standard and high-temperature versions for different operating temperatures. The single-seat valve core is an upper-guided plunger type, while the sleeve valve core is cylindrical, guided by the inner bore of the sleeve. The sleeve is precision-machined with specially designed window openings, ensuring precise flow characteristics that comply with IEC and national standards for slope deviation requirements. The standard packing is PTFE molded packing, with flexible graphite specialty packing available for specific field requirements.
Product Benefits & Features
Why Choose Fleyenda Valve Manufacturing
Product Stability
We use reinforced structures and precision sealing to ensure consistent performance under pressure and temperature changes.
Conpany&Product Certification
We have CE, RoHS, ISO, SIL, TUV, and IP68 waterproof certifications covering safety, quality, and environmental standards.
Projects Experience
Cooperated over 40 countries, we have experience in oil & gas, energy, water, chemicals, food & beverage, and automation.
Customization Capability
With 20 years experience, we turn complex working conditions into precise valve solutions with high speed and accuracy.
Aftersales Support
•We have technical team provides real-time video support to help customers resolve on-site issues quickly.
Customer Cases
Trusted by Shell plc, Petronas, Chevron, TotalEnergies, and Dupont in projects across 40+ countries.
Our Product Actual Export Pictures
FAQs That 80% Users Interest
1. What factors determine the best sizing for an Angle Control Valve in industrial flow systems?
• Accurate flow rate and differential pressure calculation prevent oversizing or unstable modulation.
• Proper Cv selection ensures smooth throttling and stable operation.
• The angle-body design optimizes pressure recovery and flow direction.
• Correct actuator choice maintains responsiveness and precise automation control.
2. How does an industrial angle valve reduce cavitation and erosion in high-pressure applications?
• The 90° angle flow path minimizes turbulence and internal wear.
• The angle-body structure discharges vapor efficiently in flashing conditions.
• Hardened trim materials resist corrosion and extend service life.
• The anti-cavitation design maintains pressure balance and protects outlets.
3. What installation tips ensure the angle-type control valve operates at peak performance?
• Follow proper flow direction to maintain correct velocity and pressure.
• Use suitable pneumatic or electric actuators with fail-safe positioning.
• Calibrate valve positioners to ensure stable control and reduce hunting.
• Maintain straight-pipe sections and vibration isolation to reduce noise.
4. What maintenance practices improve reliability and lifespan of an angle-body control valve?
• Inspect valve trim for corrosion, wear, or cavitation damage.
• Keep actuator linkages clean and properly calibrated.
• Monitor pressure drop and flow velocity to detect early issues.
• Use erosion-resistant coatings for severe service environments.
