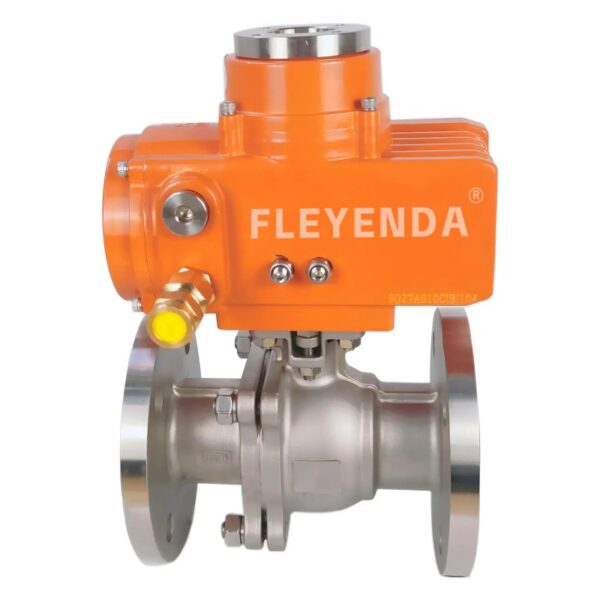

FLE-Q-F PTFE Fluorine-Lined Electric Ball Valve

Fleyenda two-way PTFE fluorine-lined ball valve has GB/DIN/ANSI/JIS standards. The valve body is lined with imported fluorine material, which has good corrosion resistance and wear resistance. The valve body is compact in design and has small gaps, which effectively reduces the accumulation of materials and prevents the crystallization of accumulations from affecting the sealing effect. Suitable for highly corrosive media such as alkali salt, oxidative extrusion, sulfuric acid, hydrofluoric acid, phosphoric acid, chlorine, etc.

Send Enquiry Now

Technical Specifications

PTFE Fluorine-Lined Electric Ball Valve – Key Features

PTFE (or FEP/PFA) lining ensures superior resistance to strong acids, alkalis, and corrosive chemicals
Electric actuator control enables automated on/off or modulating operation
Zero-leakage sealing with precision-machined ball and seat design
Full-bore flow path minimizes pressure drop and maximizes efficiency
Robust body materials (carbon steel, stainless steel) fully protected with fluorine lining
Actuator options: ON/OFF, modulating (4–20mA / 0–10V), with position feedback and manual override
Ideal for chemical, pharmaceutical, petrochemical, environmental, and water treatment industries

Technical Parameters of PTFE Fluorine-Lined Ball Valve

Size Range	1/2” – 4” Inch
Ball Material	Stainless Steel 304、304L、316、316L(CF8、CF8M、CF3、CF3M)
Body Material	Stainless Steel 304、304L、316、316L(CF8、CF8M、CF3、CF3M)
Seat Material	PTFE, Nylon, PPL
O Ring	PTFE
Connection Type	Tri Clamp, Weld (GB/ANSI/JIS/DIN)
Pressure Rating	10bar/16bar
Temperature Of Medium	-40°C~180°C (-104°F~356°F)
Electric Actuator	On/Off, Regulation, Intelligent, Multi-Turn, Explosion-proof
Applications	Water Treatment, Oil&Gas, Biotechnology, etc

Actuator Model	Standard Time/Torque	Optional Time/Torque	Rotation Angle Range	Actuator Weight	Power Supply	Optional Control Circuit
FLE-105	25S/50Nm	4S/20Nm 10S/30Nm	0-90° Adjustable	2.2kg	DC24V AC24V AC110V AC220V AC380V	A type B type C type D type E type F type
FLE-110	25S/100Nm	15S/50Nm		5.1kg
FLE-116	25S/160Nm	15S/80Nm		5.1kg
FLE-120	25S/200Nm	15S/100Nm		7.5kg
FLE-140	25S/400Nm	15S/200Nm		7.5kg
FLE-160	25S/600Nm	15S/300Nm		8.1kg
FLE-1100	50S/1000Nm	25S/500Nm		12.7kg
FLE-1200	50S/2000Nm	25S/1000Nm		12.7kg
Type	ON/OFF, Regulating, Intelligent
Insulation Resistance	100MΩ/500VDC
Dielectric Strength	1500V AC 1min.
Level of Protection	IP67 (IP68 optional)
Installed Location	360° Installation at any Angle
Electrical Interface	2-G1/2 Metal Fitting, the corresponding metal cable joints should be installed according to the selected cables
Ambient temperature	-20°C to +60°C
Optional Explosion Proof	Ex d II BT4 / CT4 / CT6 Gb
Power-loss reset (fail-safe) function	Fail-open, Fail-closed or No-reset (factory-selectable)
Optional functions	Overtorque protection, dehumidification heater, passive contact switch, operating handwheel

PTFE Fluorine-Lined Electric Ball Valve Structure and Dimensions
