FLE-Z15-GA Flange WCB Electric Gate Valve Multi-turn Fleyenda
FLE-Z15-GA Flange WCB Electric Gate Valve Multi-turn Fleyenda

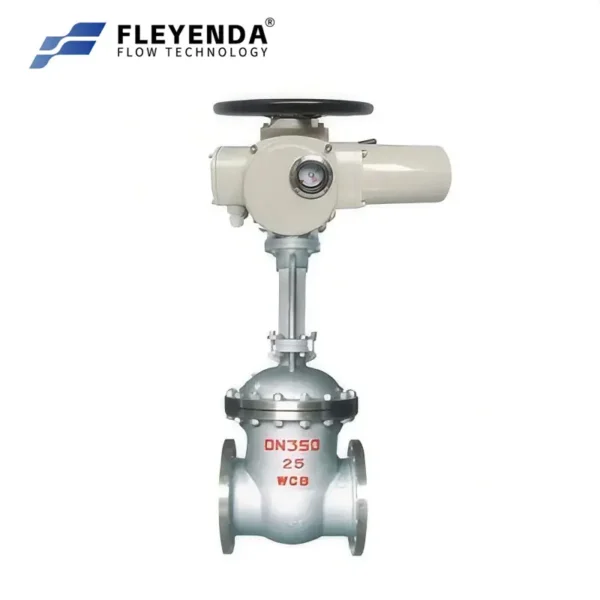

FLE-Z15-GA is a single gate electric multi-turn gate valve. The gate valve body is made of WCB (cast carbon steel), which has excellent durability and corrosion resistance. This makes it suitable for a variety of applications including water, oil, gas and steam.
Technical Specifications
| Size Range | DN15 to DN500 (1/2”~ 20” Inch) |
| Body/Bonnet Material | CF8, CF3, CF8M, CF3M, WCB, LCB, WC6, WC9, C5 |
| Stem Material | F304, F304L, F316, F316L, 2CR13 |
| Wedge Material | CF8, CF3, CF8M, CF3M, WCB, LCB, WC6, WC9, C5 |
| Seat Material | PTFE, Nylon, PPL |
| Packing | PTFE, Graphite |
| Connection Type | Flange (GB/ANSI/JIS/DIN) |
| Pressure Rating | PN1.0 |
| Temperature Of Medium | -30°C~450°C |
| Electric Actuator | On/Off, Regulation, Intelligent, Multi-Turn, Explosion-proof |
| Applications | Mining, Wastewater Treatment, Pulp & Paper, Chemical Processing etc |
| Parameter Model | Z10 | Z15 | Z20 | Z23 | Z45 | Z60 | Z90 | Z120 | Z180 | Z250 |
|---|---|---|---|---|---|---|---|---|---|---|
| Type | ON/OFF, Regulating, Intelligent ON/OFF, Intelligent Regulating | |||||||||
| Power Supply |
• AC380V Conventional three-phase -50Hz • AC220V Conventional single-phase -50Hz • AC660V, AC440V, AC415V Special three-phase -50Hz, 60Hz • AC110V Special single-phase -50Hz, 60Hz |
|||||||||
| Signal Feedback | 4–20mA, 485 ModBus, PROFIBUS, Dual-channel, and HART | |||||||||
| Motor Rate | 0.25Kw | 0.37Kw | 0.55Kw | 0.75Kw | 1.1Kw | 1.5Kw | 2.2Kw | 3Kw | 4Kw | 5.5Kw |
| Rated Current | 1.6A | 1.8A | 2.2A | 2.4A | 3.7A | 5.2A | 6.8A | 11A | 15A | 20A |
| Output Torque | 100N.m | 150N.m | 200N.m | 300N.m | 450N.m | 600N.m | 900N.m | 1200N.m | 1800N.m | 2500N.m |
| Output Speed (r/min.) | 18/24/36 | 18/24/36 | 18/24/36 | 18/24/36 | 24/48 | 24/48 | 24/48 | 24/48 | 24/48 | 24/48 |
| Weight | 16Kg | 18Kg | 24Kg | 28Kg | 50Kg | 53Kg | 68Kg | 70Kg | 113Kg | 117Kg |
| Intrinsic Error | ≤1% | |||||||||
| Level of protection | IP67 (IP68 optional) | |||||||||
| Optional Explosion Proof | Ex d II BT4 / CT4 / CT6 Gb | |||||||||
| Ambient temperature | -30°C to +70°C (Other temperatures can be customized) | |||||||||
| Ambient humidity | ≤95% (At 25°) | |||||||||
| Motor Working System | Rated operation 10min., F Grade insulation (special time to be customized) | |||||||||
| Power-loss reset (fail-safe) function | Fail-open, Fail-closed or No-reset (factory-selectable) | |||||||||
Product Benefits & Features
1. Stable Performance & Low Flow Resistance
•Gate valve design provides minimal flow resistance, comparable to a straight pipe section
•Ensures stable flow control and reliable shut-off under high-pressure conditions
•Suitable for water, gas, chemical, and industrial pipeline systems
2. Explosion-Proof Electric Actuator with Multiple Control Modes

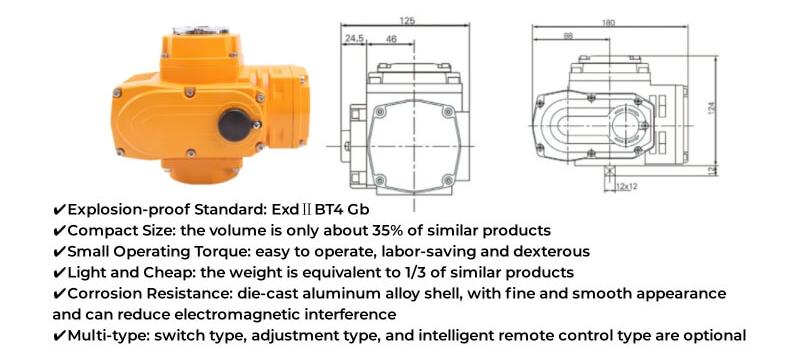

•QH Series mini electric explosion-proof actuator, compact and fast-responding
•Available in ON-OFF, feedback, and modulating control types (Type A / B / C)
•Supports 4–20 mA, 1–5 V and customized control signals
•Explosion-proof grade EXD IIB T4 with IP67 protection
3. High-Strength Materials & Wide Application Compatibility
•Valve body manufactured from stainless steel or alloy steel (CF8, CF8M, WCB, WC6, etc.)
•EPDM / PTFE seat materials provide excellent chemical, corrosion, and temperature resistance
•Multiple connection types and standards: GB / ANSI / DIN / JIS
4. Easy Maintenance & Long Service Life
•Simple and compact structure reduces wear and maintenance frequency
•Low torque operation (20s / 50Nm) minimizes actuator stress
•Long service life with lower maintenance costs and reduced downtime
Why Choose Fleyenda Valve Manufacturing
Product Stability
We use reinforced structures and precision sealing to ensure consistent performance under pressure and temperature changes.
Conpany&Product Certification
We have CE, RoHS, ISO, SIL, TUV, and IP68 waterproof certifications covering safety, quality, and environmental standards.
Projects Experience
Cooperated over 40 countries, we have experience in oil & gas, energy, water, chemicals, food & beverage, and automation.
Customization Capability
With 20 years experience, we turn complex working conditions into precise valve solutions with high speed and accuracy.
Aftersales Support
•We have technical team provides real-time video support to help customers resolve on-site issues quickly.
Customer Cases
Trusted by Shell plc, Petronas, Chevron, TotalEnergies, and Dupont in projects across 40+ countries.
Our Product Actual Export Pictures
FAQs That 80% Users Interest
1.What kinds of customized services can Fleyenda provide?
Private Labeling, Material Selection, dimensions customized, Actuator Options, etc. We also offer fittings and piping for optional.
Fleyenda is committed to providing you with a one-stop service.
2.How does Fleyenda Valve control the products quality?
We have the IPQC and QC process. We regularly do pressure testing, leakage testing, material analysis, and performance testing. Fleyanda Valve holds ISO 9001, CE, and other certifications.
Fleyedna focuses on upgrading production facilities, testing facilities and focuses on innovation to provide customers with high-quality products in the industry.
3. Can you help us to choose the right products?
Yes, We can help you choose the right valves for your needs. To do so, we would need some specific information from you.
-What is the application or industry which the valves will be used (e.g., oil and gas, water treatment, chemical processing)?
-What is the fluid or gas that will be flowing through the valves?
-What is the working pressure and temperature range for the valves?
And so on.
4.How long does it take you to prepare the goods?
We have a large number of products in stock and can be ready within 7 days. Customized products require 30 days of lead time.
