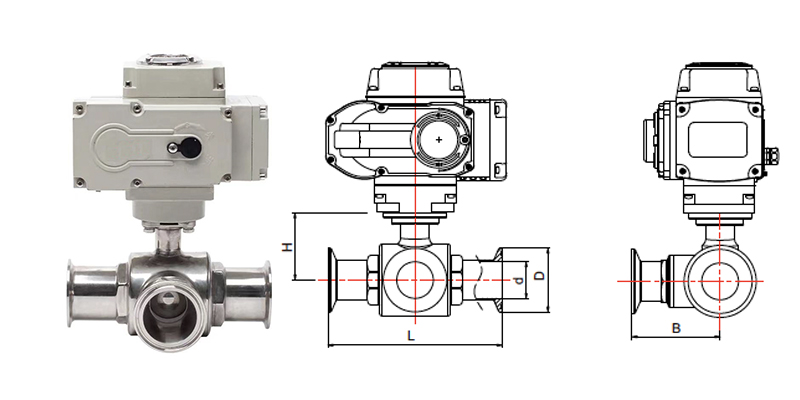

FLE-Q-3S 3-Way Tri-Clamp Sanitary Electric Ball Valve
FLE-Q-3S 3-Way Tri-Clamp Sanitary Electric Ball Valve
The 3-Way Tri-Clamp Sanitary Electric Ball Valve features an SS316L body with cavity-filled PTFE seats for full CIP/SIP cleanability, ensuring hygienic flow control and fast maintenance; certified to 3A, FDA, and ISO 9001 and tested under EN 12266-1 and API 598 for proven leak-free performance.
Technical Specifications
| Size Range | 1/2″ – 4″ (DN15 – DN100) |
| Working Pressure Range: | 0 – 10 bar (145 psi) |
| Working Temperature Range: | -10°C to +120°C |
| Body Material: | Stainless Steel SS304 / SS316L |
| Connection Type: | Tri-Clamp / Tri-Clover |
| Applicable Medium: | Water, Beverage, Dairy, Wine, Alcohol, Oil, CIP/SIP Fluids |
| Actuator Type: | Electric Actuator |
| Voltage Options | AC220V, AC110V, DC24V |
| Design Standard | ISO 5211, ASME BPE, 3A Sanitary |
| Testing Standard | EN 12266-1, API 598 |
| Fire-Safe Design | Optional API 607 |
| Certification | CE / ROHS / ISO / SIL / TUV /IP68 Waterproof |
| Customization | Above Are Standard Parameter Samples. If You Have Specific Parameters And Materials, We Can Customize Them All. |
| Actuator Model | Standard Time/Torque | Optional Time/Torque | Rotation Angle Range | Actuator Weight | Power Supply | Optional Control Circuit |
|---|---|---|---|---|---|---|
| FLE-105 | 25S/50Nm | 4S/20Nm 10S/30Nm |
0-90° Adjustable | 2.2kg |
DC24V AC24V AC110V AC220V AC380V |
A type B type C type D type E type F type |
| FLE-110 | 25S/100Nm | 15S/50Nm | 5.1kg | |||
| FLE-116 | 25S/160Nm | 15S/80Nm | 5.1kg | |||
| FLE-120 | 25S/200Nm | 15S/100Nm | 7.5kg | |||
| FLE-140 | 25S/400Nm | 15S/200Nm | 7.5kg | |||
| FLE-160 | 25S/600Nm | 15S/300Nm | 8.1kg | |||
| FLE-1100 | 50S/1000Nm | 25S/500Nm | 12.7kg | |||
| FLE-1200 | 50S/2000Nm | 25S/1000Nm | 12.7kg | |||
| Type | ON/OFF, Regulating, Intelligent | |||||
| Insulation Resistance | 100MΩ/500VDC | |||||
| Dielectric Strength | 1500V AC 1min. | |||||
| Level of Protection | IP67 (IP68 optional) | |||||
| Installed Location | 360° Installation at any Angle | |||||
| Electrical Interface | 2-G1/2 Metal Fitting, the corresponding metal cable joints should be installed according to the selected cables | |||||
| Ambient temperature | -20°C to +60°C | |||||
| Optional Explosion Proof | Ex d II BT4 / CT4 / CT6 Gb | |||||
| Power-loss reset (fail-safe) function | Fail-open, Fail-closed or No-reset (factory-selectable) | |||||
| Optional functions | Overtorque protection, dehumidification heater, passive contact switch, operating handwheel | |||||
Product Benefits & Features
1. Hygienic Design & Cleanability
• 3-Way Tri-Clamp Sanitary Electric Ball Valve made of SS316L with Ra ≤ 0.8 µm, compliant with 3A and FDA standards.
• Tri-Clamp connection enables fast CIP/SIP cleaning and easy maintenance.
• Cavity-filled PTFE seats eliminate residue and contamination risk.
• Sealed actuator housing prevents moisture and dust ingress in washdown areas.
2. Flow Control & Process Efficiency
• L-port or T-port design allows precise fluid diversion or mixing in one valve.
• Electric actuator ensures accurate positioning and stable flow control.
• Full-bore structure minimizes pressure loss and maintains smooth flow.
• Supports 4–20 mA or 0–10 V signals for automated control systems.
3. Durability & Performance
• SS316L body and PTFE/EPDM seals resist corrosion and high temperatures.
• ISO 5211 direct mount improves torque transfer and extends service life.
• Tested under EN 12266-1 and API 598 for zero-leak performance.
• Reliable operation from –10 °C to +120 °C during cleaning or sterilization.
4. Automation & Application Flexibility
• Voltage options: AC220V, AC110V, DC24V for different control systems.
• On/Off and modulating types for food, beverage, and pharmaceutical lines.
• Compact design fits sanitary skids and modular systems.
• Certified CE, RoHS, FDA, ISO9001 for international compliance.
Why Choose Fleyenda Valve Manufacturing
Product Stability
We use reinforced structures and precision sealing to ensure consistent performance under pressure and temperature changes.
Conpany&Product Certification
We have CE, RoHS, ISO, SIL, TUV, and IP68 waterproof certifications covering safety, quality, and environmental standards.
Projects Experience
Cooperated over 40 countries, we have experience in oil & gas, energy, water, chemicals, food & beverage, and automation.
Customization Capability
With 20 years experience, we turn complex working conditions into precise valve solutions with high speed and accuracy.
Aftersales Support
•We have technical team provides real-time video support to help customers resolve on-site issues quickly.
Customer Cases
Trusted by Shell plc, Petronas, Chevron, TotalEnergies, and Dupont in projects across 40+ countries.
Our Product Actual Export Pictures
FAQs That 80% Users Interest
1. What are the key benefits of using a 3-Way Tri-Clamp Sanitary Electric Ball Valve in food or beverage processing?
• Full-port flow reduces pressure drop and maintains fluid integrity.
• Tri-Clamp ends allow fast disassembly and efficient CIP cleaning.
• Electric actuator enables automated flow control with precise switching.
• Stainless steel body and cavity-filled seats ensure hygiene and corrosion resistance.
2. How does the actuator affect the performance of a 3-Way Tri-Clamp Sanitary Electric Ball Valve?
• Proper torque output ensures smooth operation under varying fluid conditions.
• ISO 5211 direct mount design improves stability and reduces misalignment.
• Multi-voltage options and signal control ensure flexible integration with automation systems.
• Sealed actuator housing and manual override enhance reliability in sanitary environments.
3. What hygiene factors should be considered when selecting a 3-Way Tri-Clamp Sanitary Electric Ball Valve?
• Internal surface finish Ra ≤ 0.8 µm minimizes residue and bacterial growth.
• CIP/SIP compatible design supports quick cleaning and drainage.
• Seals and materials must resist cleaning chemicals and high temperatures.
• Proper Tri-Clamp gasket alignment ensures leak-free sanitary sealing.
4. What ensures durability and compatibility in harsh process conditions?
• SS316L body and PTFE/EPDM seats resist corrosion and frequent sterilization.
• Tested to API 598 and EN 12266-1 for zero-leak performance.
• Operates reliably across wide temperature and pressure ranges.
• Modular actuator-valve structure simplifies maintenance and system upgrades.
